Description
TYA Choke & Plug Valve Product Range
Choke Overview
-
Sizes: 2″ Fig 1502 MxF with 3/4″ or 1″ Orifice, 3″ Fig 1502 MxF with 2″ Orifice
-
Service Ratings:
-
Standard Service: Up to 15,000 psi, Tested at 22,500 psi
-
H₂S Service: Up to 10,000 psi, Tested at 15,000 psi
-
-
End Connection: Hammer Union
-
Material: Forged Alloy Steel Body, Stainless Steel & Tungsten Carbide Parts
-
Compatibility: Interchangeable with major brands
-
Applications: Wellheads, Well Testing, Steam Injection, Choke & Kill Manifolds, Well Clean Operations
2″ Positive Choke Valve
Features:
-
Body-to-bonnet contact behind O-ring prevents seal extrusion
-
Choke beans made of Ceramic or Hard Alloy Steel
-
Flow Bean Chamfers: 2/64″ to 64/64″ in 1/64″ increments
-
Quick choke bean change without full disassembly
Specifications:
-
Design & Test: API 6A
-
Pressure Ratings: 2000–20000 psi
-
Sizes: 1-13/16″ to 4-1/16″
-
PSL Levels: PSL1–PSL4
-
PR Levels: PR1, PR2
-
Material Classes: AA–FF
-
End Connections: Flanged, Threaded, Flanged & Threaded
Repair Kit Includes: Choke Bean (Qty: 1)

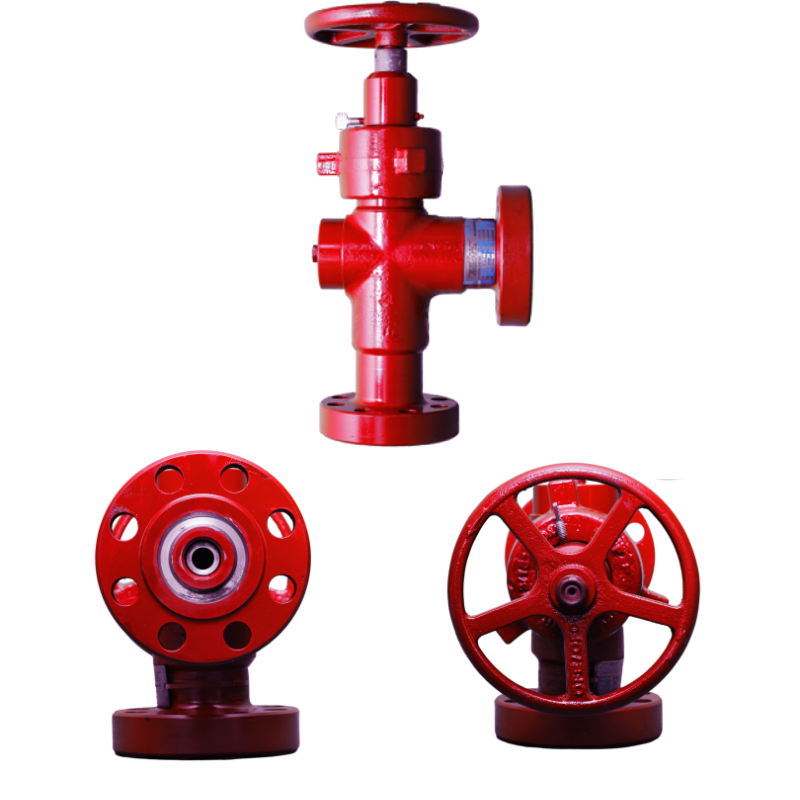

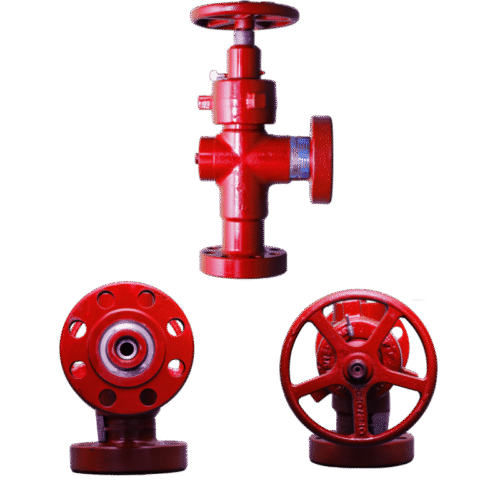

2″ Adjustable Choke Valve
Features:
-
Long life, low maintenance
-
Locking stem device
-
Convertible to Positive Choke
-
High-strength alloy steel stem
-
Abrasion & erosion resistant
-
Easy seat & valve removal without special tools
Repair Kit Includes:
-
Stem Guide (x2)
-
Stem Seal (x2)
-
Junk Ring (x1)
-
Snap Ring (x1)
3″ Adjustable Choke Valve
Repair Kit Includes:
-
Outsider O-ring (x2)
-
Seal Piston (x1)
-
Inside O-ring (x2)
-
Stem Seal (x1)
-
Snap Ring (x2)
-
Bonnet O-ring (x1)
-
Bonnet Back-Up Ring (x1)
Plug Valves
Specifications:
-
Service Ratings:
-
Standard: 15,000 psi WP / 22,500 psi TP
-
H₂S: 10,000 psi WP / 15,000 psi TP
-
-
Operation Types: Handle / Gear
-
End Connections: 1502 MxF, LP Thread
-
Sizes: 2×2, 3×3
Repair Kit Includes:
-
Plug Seal (x2)
-
Plug (x1)
-
Insert (x2)
-
Insert O-ring (x2)
-
Adjusting Nut O-ring (x1)
Why TYA?
-
API 6A Compliant designs
-
High-performance materials for extended life
-
Precision engineering for consistent flow control
-
Full repair kit availability for reduced downtime
-
Custom sizing available as per customer requirements
