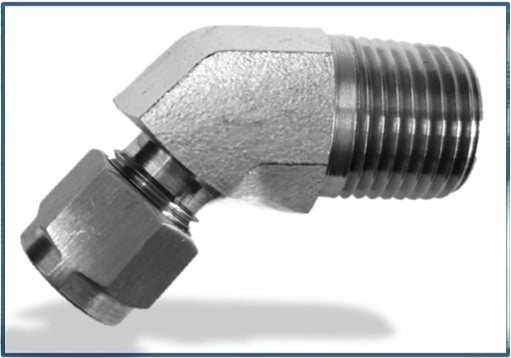

45-deg-Elbow-Connector

45-deg-Elbow-Connector

Categories: Double Ferrule Compression Fittings, Uncategorized

Description

Description

OD1 Imperial	P1 NPTM	OD	F Hex	A inch	L inch	H mm
1/16	1/16	0.05	5/16	0.34	0.94	20
1/16	1/8	0.05	7/16	0.34	1.03	22.35
1/16	1/4	0.05	9/16	0.34	1.22	27.17
1/8	1/16	0.09	7/16	0.5	1.17	23.11
1/8	1/8	0.09	7/16	0.5	1.2	23.87
1/8	1/4	0.09	9/16	0.5	1.4	28.95
1/8	3/8	0.09	11/16	0.5	1.41	29.21
1/8	1/2	0.09	7/8	0.5	1.66	35.36
3/16	1/8	0.12	7/16	0.54	7/16	24.63
3/16	1/4	0.12	9/16	0.54	9/16	29.71
1/4	1/16	0.12	1/2	0.6	1.29	25.4
1/4	1/8	0.19	1/2	0.6	1.29	25.4
1/4	1/4	0.19	9/16	0.6	1.49	30.48
1/4	3/8	0.19	11/16	0.6	1.51	30.98
1/4	1/2	0.19	7/8	0.6	1.76	37.33
1/4	3/4	0.19	11/16	0.6	1.82	38.86
5/16	1/8	0.19	9/16	0.64	1.34	26.67
5/16	1/4	0.25	9/16	0.64	1.52	31.24
5/16	3/8	0.25	11/16	0.64	1.54	31.75
5/16	1/2	0.25	7/8	0.64	1.8	38.11
3/8	1/8	0.19	5/8	0.66	1.39	27.94
3/8	1/4	0.28	5/8	0.66	1.57	32.51
3/8	3/8	0.28	11/16	0.66	1.57	32.51
3/8	1/2	0.28	7/8	0.66	1.82	38.86
3/8	3/4	0.28	11/16	0.66	1.88	40.38
1/2	1/8	0.19	13/16	0.9	1.53	28.7
1/2	1/4	0.28	13/16	0.9	1.71	33.27
1/2	3/8	0.38	13/16	0.9	1.71	33.27
1/2	1/2	0.41	7/8	0.9	1.93	38.86
1/2	3/4	0.41	1-1/16	0.9	1.99	40.38
1/2	1	0.41	1-3/8	0.9	2.25	46.99
5/8	3/8	0.38	15/16	0.96	1.74	34.03
5/8	1/2	0.47	15/16	0.96	1.93	38.86
5/8	3/4	0.5	1-1/16	0.96	1.99	40.38
3/4	1/2	0.47	1-1/16	0.96	1.99	40.38
3/4	3/4	0.62	1-1/16	0.96	1.99	40.38
3/4	1	0.62	1-3/8	0.96	2.25	46.99
7/8	3/4	0.62	1-3/16	1.02	1.99	40.38
7/8	1	0.72	1-3/8	1.02	2.25	46.99
1	1/2	0.47	1-3/8	1.23	2.26	45.21
1	3/4	0.62	1-3/8	1.23	2.26	45.21
1	1	0.88	1-3/8	1.23	2.45	50.03
1-1/4	1	0.88	1-3/4	1.62	3.04	55.11
1-1/4	1-1/4	1.09	1 -3/4	1.62	3.04	55.11
1-1/2	1-1/2	1.34	2-1/8	1.97	3.5	61.72
2	2	1.81	2-3/4	2.66	4.47	76.2

Metric OD	P1 NPTM	0D	F Hex	A mm	L mm	H mm
2	1/8	1.7	11	12.9	30.5	23.9
3	1/8	2.4	11	12.9	30.5	23.1
3	1/4	2.4	14	12.9	35.6	29
4	1/8	2.4	12	13.7	31.2	24.6
4	1/4	2.4	14	13.7	36.3	29.7
6	1/8	4.8	14	15.3	32.8	25.4
6	1/4	4.8	14	15.3	37.4	30.2
6	3/8	4.8	18	15.3	38.4	31
6	1/2	4.8	22	15.3	44.7	37.3
8	1/8	4.8	14	16.2	34.2	26.7
8	1/4	6.4	14	16.2	38.7	31.2
8	3/8	6.4	17	16.2	39.3	31.8
8	1/2	6.4	22	16.2	45.6	37.3
10	1/8	4.8	19	17.2	36.3	28.7
10	1/4	7.1	19	17.2	40.9	33.3
10	3/8	7.9	19	17.2	40.9	33.3
10	1/2	7.9	22	17.2	46.5	38.1
10	3/4	7.9	27	17.2	48	38.1
12	1/8	4.8	22	22.8	38.8	33.3
12	1/4	7.1	22	22.8	43.4	33.3
12	3/8	9.5	22	22.8	43.4	38.1
12	1/2	9.5	22	22.8	49	38.9
12	3/4	9.5	27	22.8	50.5	38.9
14	1/4	7.1	24	24.4	44.1	34
14	3/8	9.5	24	24.4	44.1	34
14	1/2	11.1	24	24.4	49	38.9
15	1/2	11.9	24	24.4	49	38.9
16	3/8	9.5	24	24.4	41.1	34
16	1/2	11.9	24	24.4	49	38.9
16	3/4	12.7	27	24.4	50.5	38.9
18	1/2	11.9	27	24.4	50.5	40.4
18	3/4	15.1	27	24.4	50.5	40.4
20	1/2	11.9	30	26	52.3	42.2
20	3/4	15.9	30	26	52.3	42.2
22	3/4	15.9	30	26	52.3	42.2
22	1	18.3	35	26	57.1	47.8
25	1/2	11.9	35	31.3	57.5	45.2
25	3/4	15.9	35	31.3	57.5	45.2
25	1	21.8	35	31.3	62.3	50
28	1	21.8	41	36.6	72.4	51.6
28	1-1/4	21.8	46	36.6	73.1	52.3
30	1-1/4	26.2	46	39.6	77.2	56.6
32	1-1/4	28.6	46	42	79.6	56.6
38	1-1/2	33.7	55	49.4	91.6	64

for SS 316 45 degree Elbow Connector are

1.TYA SS 316 Elbow Connector 1/8″ OD x 1/8″ NPTM

2.TYA SS 316 45 degree Elbow Connector 1/4″ OD x 1/4″ NPTM

3.TYA SS 316 Elbow Connector 3/8″ OD x 3/8″ NPTM

4.TYA SS 316 45 degree Elbow Connector 1/2″ OD x 1/2″ NPTM

5.TYA SS 316 Elbow Connector 3/4″ OD x 3/4″ NPTM

6.TYA SS 316 45 degree Elbow Connector 1″ OD x 1″ NPTM

7.TYA SS 316 Elbow Connector 6mm OD x 1/8″ NPTM

8.TYA SS 316 Elbow Connector 8mm OD x 1/2″ NPTM

9.TYA SS 316 Elbow Connector 10mm OD x 1/4″ NPTM

10.TYA SS 316 Elbow Connector 12mm OD x 3/8” NPTM

11.TYA SS 316 Elbow Connector 14mm OD x 3/4″ NPTM

Inquiry Now
