1We make Instrument Fittings, Stainless Steel Tube and Pipe Fittings for Instrumentation Applications as shown below
They are used for transmission, measure as well as control system flow, pressure, temperature and offer system standardization. Fittings, valves, and tubing are the main elements of the instrumentation system.There are four prime styles of high to low pressure tube fittings. They are differentiated by their end connections and applications

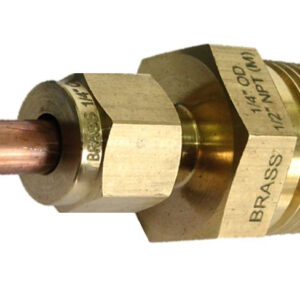

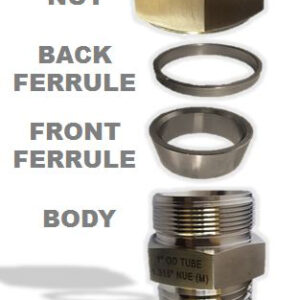

Compression Fittings Compression fittings are one of the most collective and adaptable methods of fixing metal or hard plastic tubing. They slide over the tube and use a ferrule design to coin and seal on the OD of the tube. Compression fittings are made up of three components: nut, body and ferrule (single or double). Compression fittings also perform well with thinner walled tubing, which allows for higher flow rates and can be more easily bent and handled.
Cone And Thread Fitting tube ends are coned as well as threaded. The threads permit for positive lock and sealing of the end face of tube to the fitting body. These connections are sometimes used in very high pressure applications, but are most frequently used for pressures of up to 15,000 PSI.
Butt Weld / Socket weld Fittings perpetually joins to the tube end by welding the neighbouring metal at the tube end through the fitting. The most common as well as easiest to install are compression fittings. This design uses a sequential grip on the tube.
Instrumentation Fittings is used in pipe systems to connect straight sections of pipe or tube, familiarize to unlike sizes or shapes and for other determinations such as regulating or measuring fluid flow. These fittings are used in plumbing to operate the transmission of water, gas, or liquid waste in domestic or commercial environments, inside a system of pipes or tubes.
